WELCOME!

This site is for those that want to understand powerchairs better. Or to fix or modify your own powerchair or to build superior ones as I do.

Including related subjects such a disabled adapted vehicles and houses. There's a LOT of information on this site and some very clever helpful people on the forum that can help you, or to share ideas. And that have or are building similar chairs themselves.

Forum More stuff here Power Wheelchair Menu

This is a finished DIY BM3 (Burgerman 3) powerchair. Built in my bedroom over the last few years - sadly being disabled means even simple jobs are either farmed out or take forever. One of my many chairs.

My own powerchairs are hand made with massive attention to detail & really high build quality. 16MPH (24KPH) & with a HUGE 45 Miles (72 KM) real world measured usable range. Works on sand, snow, dirt, grass and pavements and is compact for indoors. HERE

It uses a few parts from a Sunrise medical F55 chair inc the (modified tubular frame) but the rest is 90% fabricated from metal, or using parts from other disciplines. Including wheels, tyres, motors from a different chair, electronics, and huge capacity SAFE lithium ion phosphate batteries, etc. There's not a lot of this you can buy off the shelf.

This chair makes any existing powerchair look a bit silly. Since it has greater levels of torque, 3x the speed, better control, 3x the power, 3x the range, and greater outdoor capability than any other powerchair.

And is using puncture proof Kevlar reinforced low pressure tubeless tyres for reliability, comfort, and floatation on soft surfaces. Its also more compact, and shorter than almost any powerchair. It charges in 3 hours to 100% and has a 10 year battery life. there's much more on its own 5 pages are HERE

____________________________________________

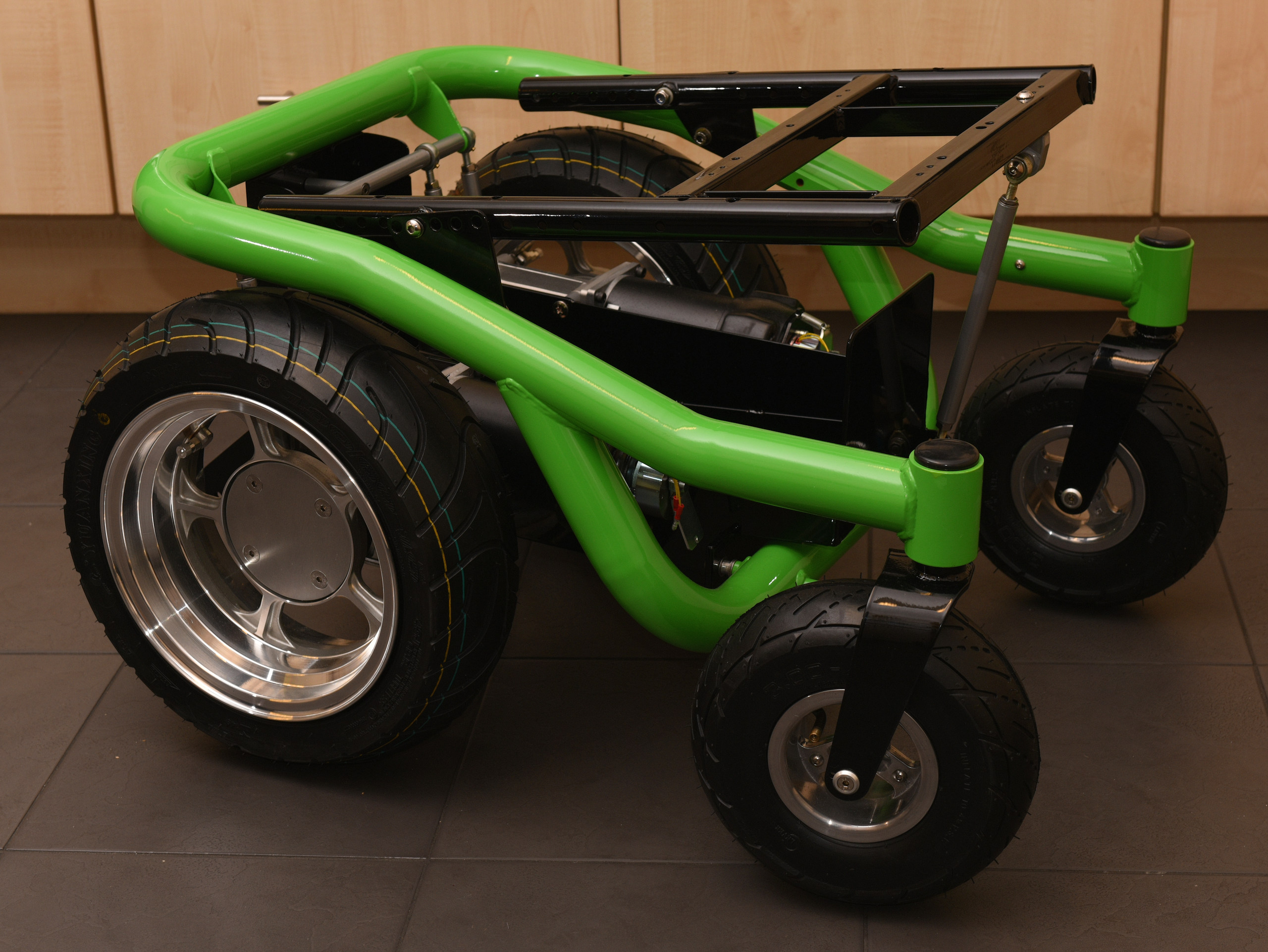

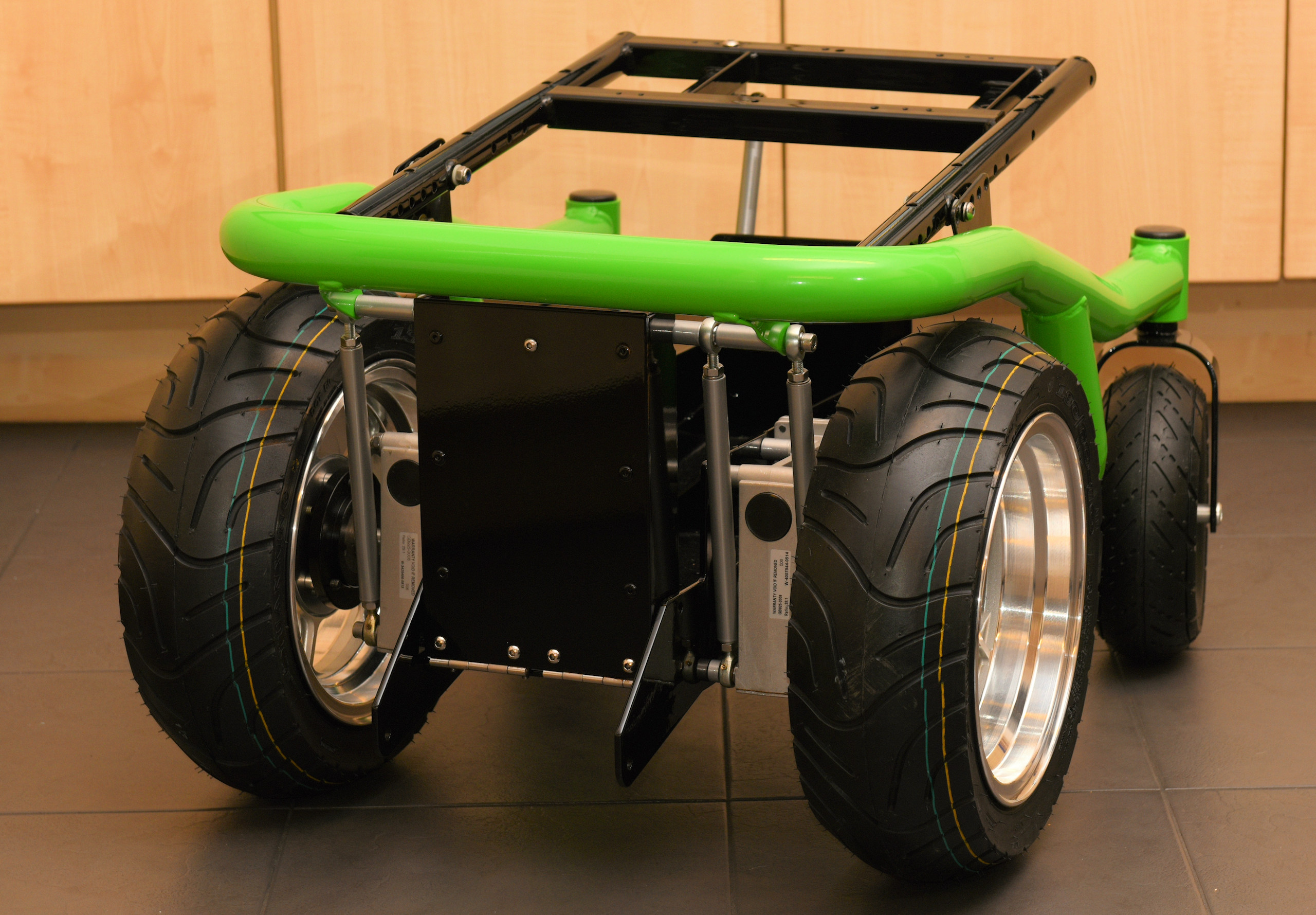

I am also currently rebuilding my 16 year old heavily modified/home designed BM2 powerchair for the 2nd time after 5 more years of serious abuse. and bringing that up to date with a fancy high tech seat back and I decided to go green!

It is much slower than the one above at around 7.7 miles per hour (and so is still running at 24V). But it too is being converted to lithium ion phosphate as it allows a massive 300% range increase over the best lead batteries in complete safety.

It was re-designed primarily for an enormous range, due to new low rolling resistance radial 6 ply road tyres, a lower top speed (lower gearing). Matched to a massive but lightweight SAFE lithium ion phosphate battery of 3.2kwh usable power.

Another picture here and here or click photo! >>

Usable range will easily exceed 55 miles in real world conditions. (Calculated and subject to testing, but based on the above BM3 known chair) and the battery life will easily exceed 10 years of service. It can be charged in 3 hours from dead empty to 100% full and is much lighter (typically 100lb+ less) than other stock powerchairs. This chair was just a cheap refresh, hence lower speed, and was built to "look" pretty...

It also uses wide, low profile wide but larger diameter 16.5 inch tubeless 6 ply RADIAL tyres for a smooth ride and a very low rolling resistance and very low possibility of deflation, with large lightly loaded front casters. This chair is under 24.5 inches wide so very narrow. And is a short 37 long inc footplate. Which makes it smaller than most indoor only chairs. But much more capable outdoors than almost any powerchair with better floatation on soft ground and range you wont believe!

Another large picture here & here. It doesn't have its own page yet. That's coming soon. There are more pictures and discussion on this chair and its lithium battery on the forum pages here until then.

WHAT ARE YOU LOOKING FOR:

If you wish to comment, help, ask questions or get some real advice we have a healthy forum of well informed and helpful people including myself on the Message Board

John Williamson AS A PARAPLEGIC ENGINEER, I have spent the last 19 years in a wheelchair after a bike accident.

I was horrified at the crap build quality and lack of design or modern materials and parts a well as the old fashioned lead batteries prevalent in this industry. All at least 15 years behind the rest of the worlds consumer goods.

So put my money where my mouth is and built my own

And since 97 I have used, tested, and abused, examined and pulled apart a great many "high end" power wheelchairs while looking for the best. Trust me, nothing much changed in this time and they they are all very much the same as they were in '97. All just basic clones of one another, with a few minor differences, using the same basic bought in industry standardised & supplied components. It seems a manufacturer just makes a frame and a few brackets. The rest is just standardised outdated components that all manufacturers use.

Nothing has improved to any real degree in well over a decade. A few more colours, new generation controllers with big (bulky) colour screens that get in the way, but all still way under-powered. Still also using old technology 24v lead acid batteries and hard to access programming tools. Few seating changes, some cup holders? That's about it for development...

Yet they cost as much as a large motorcycle or small car in many cases. No up to date Lithium technology, brushless motors, tubeless tyres, fancy materials or much else to be seen. No decent indoor/outdoor designs either - its still one or the other. All Built like an explosion in some wild bracket factory, with lots of overly complex steel, heavy, "busy" parts seemingly randomly bolted together. Masses of over complexity & weight, instead of simple clean design and some thought. So I just built my own properly!

MOBILITY ADAPTED VEHICLESS

DRIVE FROM YOUR WHEELCHAIR VANS & CARS MOSTLY!
(But a bit of everything. Including some vehicles for transporting wheelchair users!)

Adapted Accessible vehicles Menu

As an guy that used to build V8 drag race cars and bikes and SERIOUS race engines for my own customers, I know a good deal about vehicles... So when I started looking around for adapted vehicles that I could easily drive from my powerchair things got interesting!

Chrysler Minivan New Wheelchair Adapted

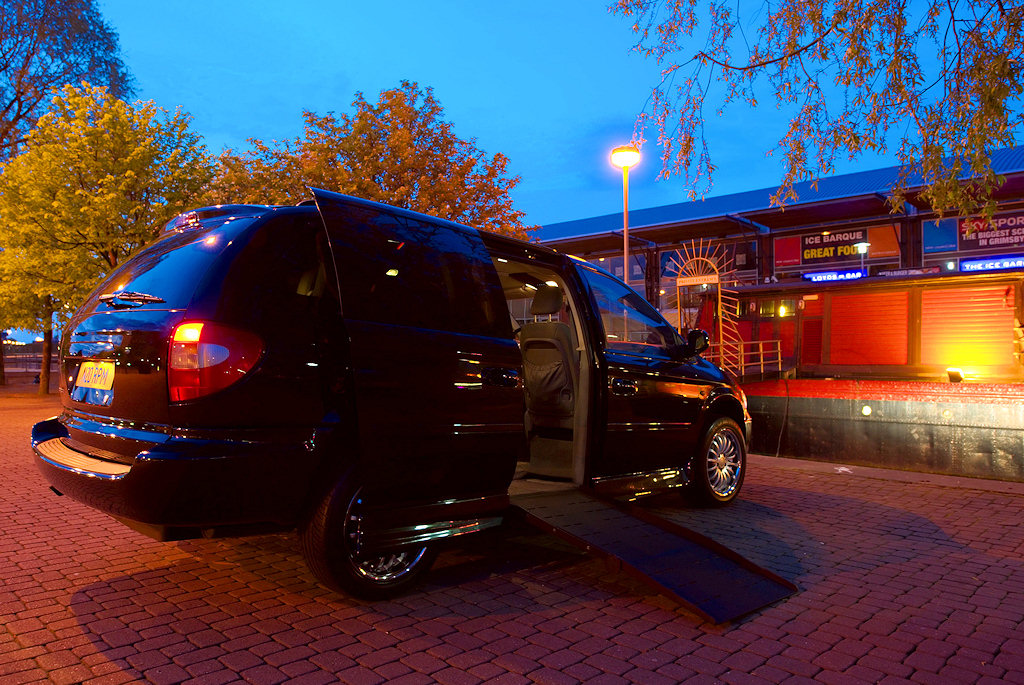

My own van that I drive from a wheelchair at a local pub in my home town in the summer evening. Lowered suspension not activated so ramp is steeper than usual

Bigger 1024 | 1920

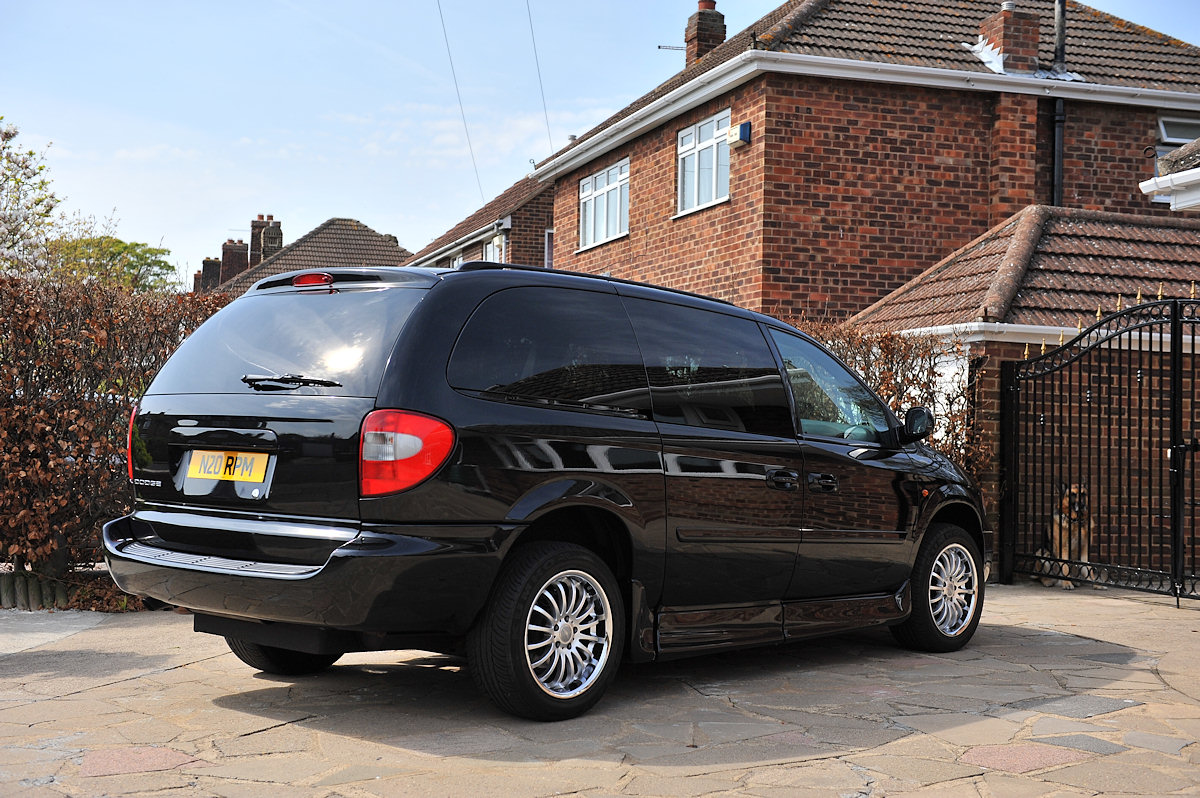

My van details:

Dodge Grand Caravan

So there's now also a section here on modified vans and cars too. The thing to remember is that these things go together.

A powerchair needs a van to transport it for longer trips. This may be one where you have a driver and ride in the passenger compartment or where you drive FROM your wheelchair. As I do. Trust me driving from a wheelchair, especially a GOOD powerchair is very liberating.

I now have my life and independence back. These things are not just a good idea they are essential! There are many new designs, and quality manufacturers in 2011/12 as I write this. Unlike the stagnated powerchair market wheelchair accessible cars and vans have become well developed, and there's lots of choice!

close up of a powerchair in position in a vehicle

I drive from a power wheelchair. A simple electronic tie down locks the powerchair in position.

Roll mouse over image to deploy the ramp and lower the suspension! This took me ages. Notice Arnie on guard duty... He is waiting for his walk and wondering what I am wasting time doing.

Lowered floor minivan medium
Lowered floor minivan large!

Wheelchair van ramp deployed medium Wheelchair van ramp deployed Large

More on the MENU:
Adapted Accessible
vehicles Menu

MY OWN SUPERIOR HOME BUILT OR HEAVILY MODIFIED POWER WHEELCHAIRS!

My newest Lithium Battery 15 MPH Fast, BM3 Powerchair HERE
Or see the BM2 modified chair I had been using for years HERE
Or the slightly modified BM1 HERE from 16 years ago...

ITS EASY TO JUST BITCH AND MOAN, The difference here is that I know how to do this stuff LOTS better than anything that I could buy. So, I put my own money and skills where my mouth is.

As such I build my own far superior power wheelchairs in my BEDROOM since there doesn't seem to be any choice. As usual I have to do it myself. As a paraplegic guy this really isn't easy, but I can do this for about 1/3rd of the cost of a cheaply built "proper" chair...

And while using modern far better technology as well as hugely better build quality and design, such as Kevlar lined tubeless tyres for smooth ride, and no punctures, stainless bearings and bolts so nothing corrodes or fails, a huge but light lithium battery power for massive range or to just charge weekly like your phone, 150 Amp 45 volt control system for more speed, power & efficiency and much, much more.

Including less weight, very compact truly indoor capable design, rearward C of G good for control and wheelie capability and soft ground, etc.

WAY more of "everything good" in fact than all the chairs offered by the REAL manufacturers. And built to a standard that really should embarrass them. In total it costs me about 2.5 to 3k UK Pounds per chair! (4 to 5k US Dollars?) PLUS my time and effort obviously, doing one at a time at full retail prices. And you wonder why I bother? #

I can build 3 of these power wheelchairs for the same price as one "official" mobility company bought powerchair!!!

BM2 REDESIGNED AND BUILT IN A BEDROOM - a heavily modified sunrise F55 powerchair! Very heavily! But still lead powered and slow.

BM3 - A LITHIUM Powered, 15MPH, 45 MILE RANGE, INDOOR/OUTDOOR POWER WHEELCHAIR built by me, and for me, only for my own use. Only the round tube frame is from an F55 powerchair. And a few other minor insignificant bits.

But I do post all the info and details on here to help others do the same. And to encourage the real manufacturers to get with the show! (10 years late!)

Have done this for myself for 10+ years since landing in a wheelchair and discovering that all powerchairs were frankly useless, under engineered, overweight, badly designed and unreliable!

The one at the top of this page for e.g. is my BM2 or previous generation chair and the one I am sat in, in the pub, typing this page from. Scroll down to see more info and pages/versions of my own powerchairs should you be interested.

I am just in the process of finally assembling the 3rd incarnation of my latest powerchair! Called BM3 (for Burgerman 3) Its quantum leap better in every direction than anything you can actually buy (and follows on from the BM1 and BM2 powerchairs) for the following reasons:

BM3 Home

HERE, CURRENTLY UNDER CONSTRUCTION, EXCEEDS ALL SPEED, SIZE, WEIGHT, RANGE, CONTROL, BUILD QUALITY, RIDE COMFORT, POWER 7 TORQUE PARAMETERS OF EVERY OTHER POWERCHAIR AVAILABLE.

IT ALSO USES A 3000 WATT HOUR LITHIUM BATTERY WITH 10 YEAR LIFE FOR 45+ MILES REAL WORLD RANGE. WANT A DECENT POWERCHAIR? YOU CANT BUY ONE. YOU NEED TO BUILD YOUR OWN LIKE THIS!

BM3 Home

MUCH Faster! at 15 to 16 MPH
MUCH more Power & Torque (about 3x more!)
HUGE 2x to 3x the range of normal power wheelchairs @ 45+ real world miles
Smaller than most indoor only chairs at 26.0 inches wide, 37 inches long inc. footplate etc.
Off road, snow, sand, mud - TRULY outdoor capable!
Smoother ride due to low pressure rear tyres (5 PSI with fat sidewalls) and 10 inch front casters
Better finish and longer lasting by miles!
HUGE Lithium Ion Phosphate 45v battery with ultra fast charge capability & HALF the weight
10 year+ battery life
Superior controllability & accuracy
Better indoor manoeuvrability
In CAR or home charging

More important than all of the above, it is designed SO ALL OF IT WORKS TOGETHER to create a tight, light, capable, compact indoor/outdoor all day (all week!) powerchair that just WORKS WELL, GOES ANYWHERE, GOES FAST, GOES THE DISTANCE...

Ask YOUR wheelchair manufacturer why your chair doesn't do all the above?
See what feeble excuses they give you. There is no excuse!!! Its all possible, better, and available cheaply today!

LINKS TO MY HOMEBUILT POWERCHAIRS BM1, BM2 & BM3

My NEW Lithium Battery Fast BM3 Powerchair (under construction) HERE
Or see the BM2 highly modified chair I have been using for 2 years HERE
Or the slightly modified BM1 HERE

BM1 very old stuff:
My Lightly Modified & Improved Powerchair
Part 1 2 3 4 5 6

BM2 old stuff:
My VERY Modified Off Road & All terrain DO ALL Powerchair!
Part 1 2 3

BM3 current Stuff:
BM3 Home BM3 Lithium BM3 15 MPH Charging Construction detail Roboteq controller BM3 Summary printable PDF

SO WHAT'S NEW?

Today?

This Transmitter booster: JR 12X + Wi-Fi Booster

Its for my Quad Copter here: TBS Discovery

Lots of stuff is changed and updated daily, so its hard to say exactly but these are interesting! Just added a page showing where I build these powerchairs. I do it in a bedroom! + Pride's Quantum "Rehab" Q6 "Edge" Powerchair review & Drive from VW + Review of the horrid "Spectra Plus" + Ultimate do everything charger + My T-Rex 500 helicopter! + Why all powerchairs should be off road capable! and manual wheelchair "add on" power-packs (and powered wheels) + Disabled transport - Peugeot E7 - Save cash! LED home lighting - convert Hyperion charger to Bluetooth and tons more. See below:
